In the Power Factor Correction (PFC) cabinets of industrial distribution systems, the choice of a contactor (Contactor) directly determines the stability and safety of the entire system. Many engineers often confuse the general-purpose CJX2 (AC Contactor) with the specialized CJ19 (Switching Capacitor Contactor) during the initial design phase.
As the technical team at HertzKron, we maintain a strict principle: when handling Power Factor Correction tasks, one must respect the physical characteristics of the Capacitor at the moment of switching. This article will provide a deep dive into the fundamental differences in structure and function between these two components from a circuit logic perspective.
1. The Core Challenge: The Inrush Current Problem in Power Factor Correction
When executing Power Factor Correction, the switching process of a Capacitor is accompanied by a massive transient impact.
Based on physical properties, when a Capacitor is connected to an AC grid from an uncharged state, the Voltage across its terminals cannot change instantaneously. At the moment of closing, the Capacitor essentially acts as a short circuit. This creates a peak current with a massive amplitude, known as Inrush Current.
Without effective suppression, this Inrush Current peak can reach 20 to 100 times the Rated Current of the Capacitor. This violent current pulse not only interferes with the grid but also leads directly to severe Arc erosion or Welding of the contactor contacts.
2. The Design Logic of CJ19: A PFC Switch with a Pre-charge Mechanism

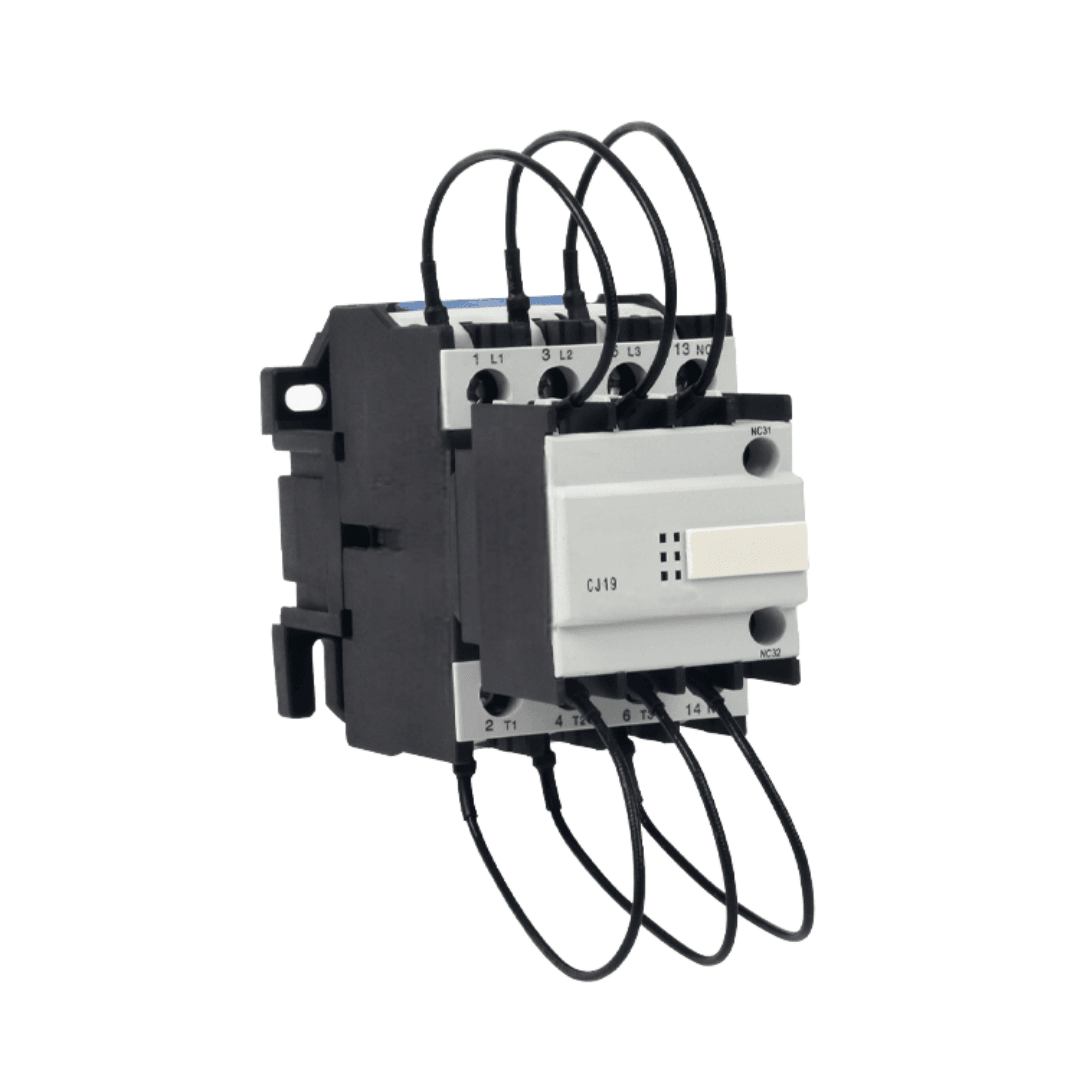

The CJ19 Switching Capacitor Contactor is specifically designed to solve the Inrush Current problem. Its essential difference lies in the integration of an internal "connect-before-switch" resistance current-limiting mechanism.
A. The Intervention of the Pre-charge Contact
A CJ19 contactor contains two sets of contacts: the Main Contact and the Pre-charge Contact, which is equipped with a Current Limiting Resistor. After the Power Factor Correction Controller (PFC Controller) issues a closing command, the Pre-charge Contact closes slightly before the Main Contact.
B. The Suppression Effect of Resistance
When the Pre-charge Contact closes, the Current must first flow through the series-connected Current Limiting Resistor. According to Ohm's Law, this additional impedance forcibly suppresses the Inrush Current at the moment of closing to less than 10 times the Rated Current.
C. Main Contact Takeover and Resistor Cut-out
A few Milliseconds after the Pre-charge Contact acts, the Main Contact formally closes, short-circuiting the Current Limiting Resistor circuit. At this point, the Capacitor enters full-current operation, and the Resistor exits the circuit to cool down rapidly, waiting for the next Power Factor Correction cycle.
3. Essential Technical Comparison: CJ19 vs. Standard CJX2 Contactors
In HertzKron's engineering practice, we strictly forbid the use of standard CJX2 contactors in Power Factor Correction systems that do not include reactors, for the following reasons:
I. Contact Welding Risk
- CJX2: The Main Contact is directly exposed to uncontrolled Inrush Current. The tiny Bounce of the contacts upon closing creates a violent Arc, and the instantaneous high temperature easily causes the silver-alloy contact surfaces to fuse together (Welding).
- CJ19: By effectively limiting the peak Current, the contacts always operate within a safe Temperature Rise range, completely avoiding contact adhesion caused by closing impacts.
II. Voltage Drop and Grid Interference
- CJX2: The massive closing current causes a short-term Voltage Drop in the local grid, which can lead to errors in precision equipment such as PLCs or VFDs.
- CJ19: The smooth switching process ensures a stable Voltage within the factory grid, which is the foundation of a high-quality Power Factor Correction solution.
III. Electrical Life
- CJX2: In frequent Power Factor Correction cycles, the Electrical Life decays rapidly due to severe contact erosion.
- CJ19: By utilizing step-by-step physical connection, the HertzKron CJ19 provides tens of thousands of failure-free switching cycles.
4. The Superior Engineering Standards of HertzKron CJ19
In the HertzKron product line, the CJ19 contactor is designed with higher redundancy to ensure long-term reliability under complex Power Factor Correction scheduling.
- High Thermal Capacity Resistor: The non-inductive resistors we select possess extreme heat dissipation capabilities. Even in work conditions with frequent load fluctuations and dense switching, they will not cause shell deformation due to overheating.
- Precision Time Interval Control: The Time Interval between the Pre-charge Contact and Main Contact is calibrated through multiple rounds of experimentation. This ensures that while the Capacitor is pre-charged, the Resistor is not burned out by excessive load time.
- Vibration and Corrosion Resistance: For industrial environments, our contactors utilize enhanced silver-gold alloy contacts, ensuring extremely low Contact Resistance even in humid or high-dust environments.
5. Application Recommendations: When is a CJ19 Mandatory?
As a professional Power Factor Correction system provider, HertzKron recommends the mandatory use of CJ19 in the following applications:
- Pure Capacitor Compensation Systems: When there is no series Reactor in the system to suppress the rate of current change, the CJ19 is the only means of protection.
- Precision Manufacturing Lines: To prevent transient switching from interfering with Motors or sensitive electronic components.
- High-Frequency Switching Loads: In locations like shopping malls or hotels where loads change violently and the PFC Controller must act frequently.
6. Conclusion: Respecting Physical Logic for Efficient Power Factor Correction
The success of Power Factor Correction depends not only on whether the calculated capacity is correct but also on whether every executing component can handle physical extremes.
The CJ19 Switching Capacitor Contactor, with its unique current-limiting resistor mechanism, resolves the electromagnetic violence of the switching moment. In every successful HertzKron case, it is these precise graspings of detail that safeguard the purity and stability of the factory grid.
Choosing HertzKron means choosing a power future based on logic and safety.
