In international power factor correction (PFC) engineering bidding and industrial power quality governance projects, the selection of detuned reactors directly determines the safety factor of the entire system. Generally, the global market predominantly adopts standard nominal detuned rates of 6%, 7%, or 14%. However, in certain specific overseas high-standard industrial projects—particularly those governed by Middle Eastern, North African, or French (IEC standard extension) electrical design institutes—a 7.5% detuned rate appears with high frequency.
From the underlying electrical engineering logic, specifying a non-standard 7.5% detuned rate is a design decision based on rigorous mathematical derivation and boundary safety evaluation. This article deconstructs the core technical mechanisms behind the 7.5% detuned rate from three dimensions: precise control of the series resonance point, the voltage rise effect, and manufacturing process implementation.
I. Precise Control of Series Resonance Point and Safety Frequency Shift Margin
The core purpose of connecting a detuned reactor in series within a capacitor circuit is to alter the overall impedance characteristics of the power factor correction system. This ensures that the system exhibits inductive impedance at characteristic harmonic frequencies, thereby avoiding parallel resonance and suppressing harmonic currents from flowing into the capacitors.
1. Mathematical Derivation of Resonance Frequency
The series resonance frequency (fr) of the system is directly related to the system fundamental frequency (f1, taking 50Hz as an example) and the detuned rate (p). The calculation formula is as follows:fr = f1 * √(1 / p)
When the detuned rate p = 7%:fr = 50 * √(1 / 0.07) ≈ 189 Hz
This resonance point is precisely positioned between the 3rd harmonic (150Hz, inductive impedance zone) and the 5th harmonic (250Hz, capacitive impedance zone), primarily serving to protect capacitors in environments dominated by the 5th and higher characteristic harmonics.
When the detuned rate p = 7.5%:fr = 50 * √(1 / 0.075) ≈ 182.5 Hz
In comparison, fine-tuning the detuned rate from 7% to 7.5% shifts the overall series resonance frequency of the system downward by 6.5Hz.
2. Deep-Seated Reasons for Introducing a Safety Frequency Shift Margin
This 6.5Hz reduction in the resonance point represents a critical safety frequency shift margin in rigorous modern industrial design, implemented to counteract two types of practical grid operation variables:
Natural Degradation of Capacitor Capacitance (Aging Effect)
Over long-term operation, capacitors experience gradual dielectric aging due to internal partial discharges, high ambient temperatures, and voltage stress. This causes the actual capacitance (C) to progressively decrease. According to the resonance formula fr = 1 / (2 * π * √(L * C)), when capacitance C decreases, the resonance frequency fr irreversibly drifts toward higher frequencies (to the right).If the initial design utilizes a 7% detuned rate (189Hz), once the capacitor capacitance degrades by more than 10%, the resonance point will rapidly approach 200Hz or higher. This easily triggers localized parallel resonance as it nears the 5th harmonic (250Hz), amplifying harmonic currents by dozens of times and leading to catastrophic, batch-wise breakdown of capacitor banks. Setting the initial value to 7.5% (182.5Hz) provides a sufficiently wide safety buffer zone for the entire lifecycle of the capacitors.
Dynamic Fluctuations of Grid Fundamental Frequency
In certain independent grids, large-scale heavy industrial zones, or isolated projects powered by diesel generator sets, the fundamental frequency often fails to remain stable at an absolute 50Hz. When the fundamental frequency drifts upward, the original resonance boundaries of the system are disrupted. A 7.5% detuned reactor ensures that the impedance characteristics remain locked within the safe zone even under severe system frequency fluctuations.
II. Voltage Rise Effect and Matching Mechanism of High-Voltage Rating Capacitors
In low-voltage power factor correction systems, reactors and capacitors never exist as isolated components. When a reactor is connected in series within the circuit, the interaction between inductive and capacitive reactance forces an elevation of the actual fundamental terminal voltage across the capacitor.
1. Quantitative Calculation of Fundamental Voltage Rise
The relationship between the capacitor terminal voltage (Uc), the nominal system operating voltage (Un, taking a standard 400V system as an example), and the detuned rate (p) is expressed by the following formula:Uc = Un / (1 - p)
When selecting a 7% detuned reactor:Uc = 400V / (1 - 0.07) ≈ 430.1V
When selecting a 7.5% detuned reactor:Uc = 400V / (1 - 0.075) ≈ 432.4V
2. Harmonic Superposition and Engineering Binding with 525V Capacitors
The actual voltage environment in industrial field sites is far more complex than theoretical calculations. In heavy industrial distribution grids, in addition to the fundamental voltage rise caused by the detuned rate (432.4V), two other voltage variables must be superimposed:
Positive Deviation of Grid Voltage: According to international standards, a nominal 400V system allows a fluctuation of +/-10%, meaning the long-term upper operating limit can reach 440V.
Total Harmonic Voltage Distortion (THDu): When characteristic harmonic currents flow through the reactor and capacitor, they generate high-frequency harmonic voltage superpositions on the internal capacitor plates, causing the peak voltage to far exceed the fundamental RMS value.
If one blindly applies standard capacitors with voltage ratings of only 450V or 480V in a 7.5% detuned rate environment, the capacitor plates will operate under long-term borderline overvoltage conditions. This forces frequent "self-healing" events within the metallized film, accelerating capacitor failure.
Consequently, international mainstream design institutes typically mandate the binding of 525V high-voltage rating capacitors when specifying a 7.5% detuned rate. This configuration leverages the superior voltage withstand redundancy of 525V capacitors to perfectly offset the intense voltage rise and high-order harmonic voltage spikes generated by the 7.5% detuned reactor, ensuring an exceptionally long insulation lifespan for the entire compensation system even within extreme, highly distorted industrial power grids.
III. Manufacturing Process Implementation and Refined Structural Design for Non-Standard Parameters
Translating the "7.5%" from an electrical drawing into a highly reliable physical entity requires a comprehensive evaluation of a manufacturer's underlying design capabilities and manufacturing processes. In actual production and manufacturing, the following core process details must be strictly controlled:
1. Precise Inductance Tuning and Air Gap Control
A 7.5% detuned rate means that the inductive reactance of the reactor must be strictly equal to 7.5% of the capacitive reactance of the matching capacitor. Since the actual capacitance of manufactured capacitors widely exhibits positive and negative tolerances (typically +/-5%), manufacturing plants cannot rely on a single, unvarying set of winding turn data when producing reactors.
Precise Inductance Calculation (mH): The required nominal inductance (Ln) of the detuned reactor must be reversely derived and precisely calculated based on the actual measured capacitance value (kvar) of the capacitor.

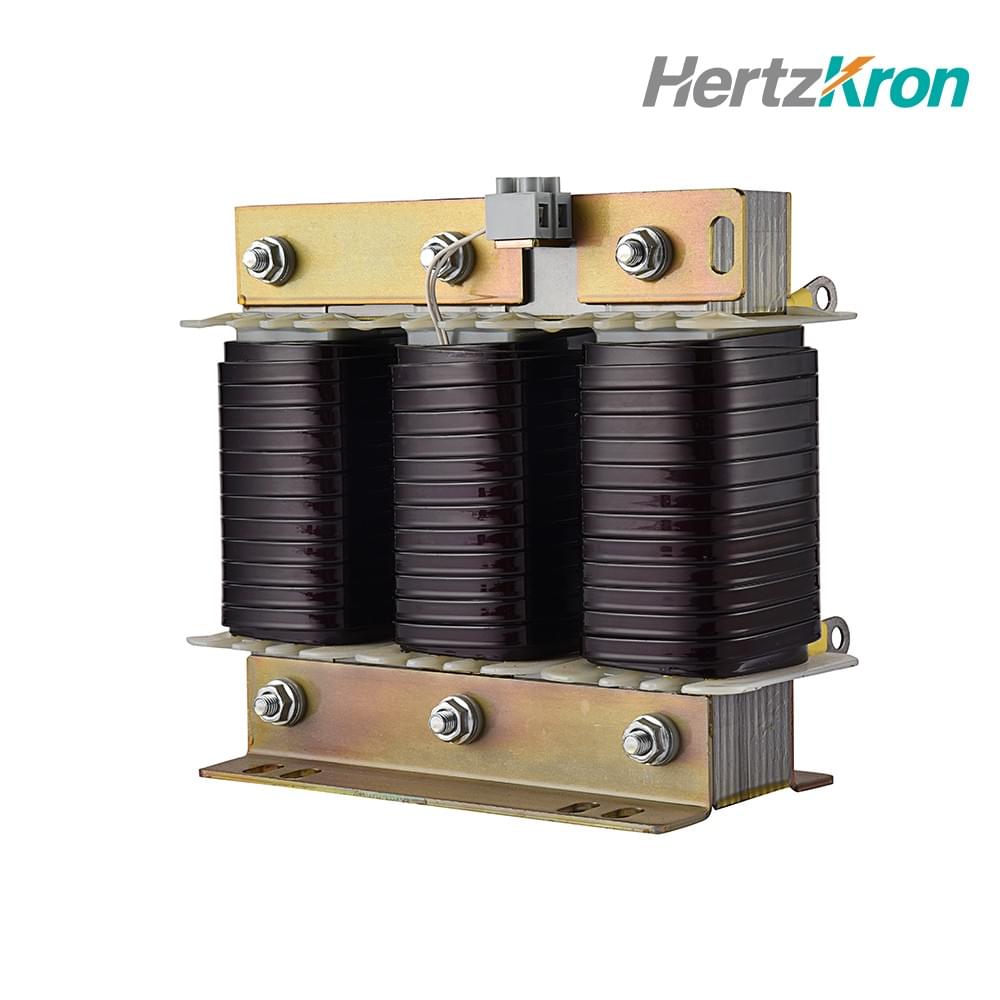

Refined Control of Core Air Gaps: The inductance of an iron-core detuned reactor primarily depends on the total thickness of the air gaps within the iron core. To control the 7.5% detuned error within +/-3%, a multi-segmented micro air gap series structure must be utilized. Furthermore, high-precision clamping fixtures must be applied to compress the air gap spacers tightly. This prevents air gap deformation, inductance drift, localized overheating, or elevated noise levels caused by uneven air gaps under the long-term action of alternating magnetic forces.
2. Linearity Control of Magnetic Saturation Characteristics
Detuned reactors in industrial systems must withstand the long-term superposition of fundamental reactive currents and harmonic currents. When large currents pass through, magnetic saturation can easily occur if the core material is improperly selected.Once the iron core saturates, the actual inductance of the reactor drops precipitously (for example, plummeting from 7.5% to 3% or lower), which directly causes the system resonance point to instantly shift to the right, triggering catastrophic parallel resonance. Therefore, when manufacturing 7.5% detuned reactors, high-permeability, low-loss premium cold-rolled silicon steel sheets must be chosen, and the magnetic flux density must be designed within a reasonable linear range. This guarantees that the inductance remains constant under linear currents of Ilin ≥ 1.35 * In or even higher multiples.
3. Strict Compliance with Physical Dimensions of Standard Drawings
Physical adjustments for non-standard parameters must never come at the expense of the mechanical mounting universality of the components. While ensuring the 7.5% electrical performance, inductance linearity, and temperature rise control, the overall structural design of the reactor must exhibit high integration and compactness.
Through optimizing the geometric shape of the coil windings, properly allocating the window coefficient, and utilizing high-temperature resistant insulation materials (Class H or above), the mounting hole spacing and overall projection footprint of the reactor should be strictly confined to and perfectly compatible with industry-standard physical drawing dimensions of 63 x 95. This design ensures that overseas EPC contractors and panel builders can seamlessly assemble, integrate systems, or perform in-situ replacement retrofits on older cabinets without modifying any standard rail structures, busbar spacing, or mechanical fasteners.
In the field of industrial electrical engineering, every seemingly uncommon technical parameter is backed by explicit data support. The reactive power compensation solution pairing a 7.5% detuned rate with 525V capacitors relies on its excellent safety frequency shift margin and voltage withstand dividends, representing the rigorous standards of high-end overseas industrial distribution systems for long-term power quality management.
As a production enterprise equipped with complete underlying R&D and process manufacturing capabilities, it is necessary not only to deeply understand the mathematical logic behind the 7.5% parameter, but also to output highly deterministic and precisely matched core components for harmonic mitigation to various complex and harsh industrial grid environments globally. This is achieved through precise inductance tuning, optimal selection of anti-saturation materials, and rigid adherence to the 63 x 95 standard installation dimensions.
