Mechanism of Parallel Resonance and Co-existence Solutions for AHF and Traditional Capacitor Banks in Modern Industrial Grids

Introduction

In modern precision manufacturing, semiconductor, and thermal treatment industries—such as those utilizing Physical Vapor Deposition (PVD) furnace systems and high-power Variable Frequency Drives (VFDs)—the widespread application of non-linear loads introduces severe power quality challenges. High-order harmonic distortion and low power factors often co-exist in these environments. To balance cost and performance, many industrial plants choose to parallel an Active Harmonic Filter (AHF) alongside their existing traditional capacitor banks for hybrid compensation.

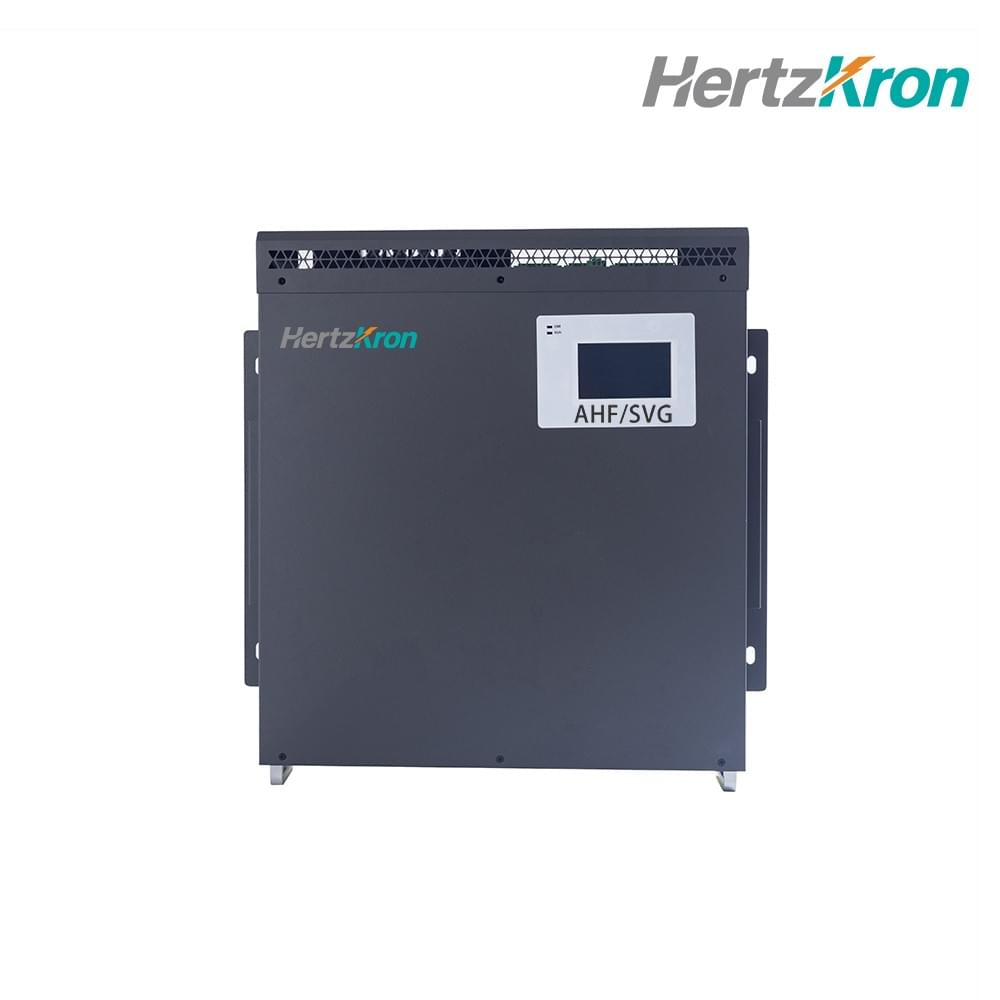

3-phase 4-wire active harmonic filter.

However, due to the inherent impedance and control loop differences between high-frequency power electronics and traditional passive components, operating both systems in parallel can easily trigger grid high-frequency resonance and voltage flicker. This white paper analyzes this common industry pain point and demonstrates how the Hertzkron intelligent active power quality system achieves perfect grid compatibility and seamless system-level integration.

1. Typical Grid Conditions and Parallel Conflict Mechanisms

In a standard "traditional passive capacitor bank + Active Harmonic Filter (AHF)" system, even when the primary non-linear loads are not fully operational, simply switching the capacitor bank onto the grid can cause a chain reaction of system anomalies. This typically manifests in two distinct stages:

A. Grid Impedance Mismatch and Protective Tripping

Traditional capacitor banks without detuning features (i.e., lacking series reactors) present an extremely low impedance path to high-frequency signals. Conversely, an AHF operates as a high-speed switching device utilizing an IGBT inverter bridge, configured with a precision LCL filter at its output. When a pure capacitor bank is connected, the grid system's leakage reactance, the capacitor bank, and the AHF's internal LCL filter form a high-Q parallel resonance loop on the low-voltage busbar.

Consequently, the voltage waveform of the distribution system becomes instantly distorted by high-frequency resonance. A premium AHF equipped with sensitive self-protection mechanisms will immediately detect this grid voltage exception (Vnet Exception). To prevent high-frequency resonance voltage from damaging the core inverter components, the system actively executes a protective shutdown.

B. Control Loop Interaction and Voltage Flicker

When engineers attempt to apply control algorithms to increase damping and suppress resonance, a secondary physical anomaly often surfaces: lighting fixtures across the factory floor and office areas begin to experience high-frequency, rhythmic brightness fluctuations—a phenomenon known as Voltage Flicker.

The root cause lies in overlapping control loops. Traditional capacitor banks rely on mechanical contactors or thyristors for stepped switching, resulting in response times measured in seconds. In contrast, the AHF's reactive control loop utilizes microsecond-level instantaneous reactive power theory. When both systems attempt to compensate for reactive power on the same transformer busbar without communication linkage, they compete for reactive control authority. The AHF rapidly adjusts its output to correct the over- or under-compensation caused by the step-switching of the capacitors. This high-speed power oscillation induces minor but rapid fluctuations in the busbar voltage magnitude, which manifests visibly as light flickering.

2. Hertzkron’s Advanced Software Optimization Strategy

For emergency onsite mitigation where immediate production is required and hardware modifications are temporarily unfeasible, the Hertzkron expert technical team provides an intelligent parameter tuning strategy. This approach dampens the system's sensitivity and decouples the conflict without requiring physical alterations:

A. Optimizing the Total Harmonic Distortion of Voltage Protection (THDuP) Threshold

By accessing the advanced expert engineering menu, the THDuP threshold can be optimized and desensitized (e.g., from a restrictive 20% to a more tolerant 30%). This significantly increases the DSP chip's tolerance toward rough grid voltage waveforms, breaking the operational deadlock caused by frequent self-protection tripping.

B. Decoupling Overlapping Functions via "Harmonic Mitigation Only" Mode

Given that the traditional capacitor bank is already handling the baseline reactive power, the AHF's reactive compensation function (Target PF / Reactive Cmp) should be completely disabled in the control settings. Restricting the AHF's operation exclusively to harmonic mitigation cuts the "tug-of-war" chain between the two independent control loops, instantly eliminating voltage flicker and light blinking.

C. Fine-Tuning Gain Allocations for Specific Harmonic Orders

Industrial environments dominated by PVD furnaces or VFDs typically contain heavy 5th harmonic currents (250Hz), which are highly susceptible to amplification by traditional capacitors. By adjusting the compensation weight of the 5th harmonic channel downward (e.g., to 30%–50%) and slightly smoothing the system's overall proportional gain (Kpall), the Hertzkron AHF can output a highly optimized, balanced compensation current. This prevents the hardware from triggering overcurrent protection (cur5) due to transient high-frequency surges.

3. System-Level Hardware Restructuring: Upgrading to a Full-Active Solution (SVG + AHF)

While software tuning allows the equipment to operate stably under harsh grid conditions, the physical parallel resonance path created by the pure capacitor bank remains. To build a truly green, pure, and ultra-stable modern digital grid, upgrading the hardware architecture is the ultimate definitive step.

The Ultimate Configuration: Static Var Generator (SVG) Replacing Traditional Capacitors

Compared to mechanically switched traditional capacitor banks that frequently induce resonance, a Static Var Generator (SVG) represents the pinnacle of modern reactive power compensation.

[ Hertzkron Intelligent Full-Active Cabinet ]

┌─────────────────────────────────┴─────────────────────────────────┐

▼ ▼

[ Hertzkron SVG Module ][ Hertzkron AHF Module ]

(Provides smooth, infinite 600A Reactive Power) (Cleans 300A full-spectrum harmonics)

(Millisecond electronic response, zero resonance) (Dedicated grid purification)

Zero Resonance Risk

An SVG is built on an IGBT three-phase inverter bridge and operates as a controlled current source. Because it contains no bulk passive capacitors, its impedance profile remains perfectly stable across all frequency bands. This entirely eradicates the physical conditions required for parallel resonance.

Millisecond Coordination, Zero Flicker

The Hertzkron hybrid active power quality cabinet integrates both SVG modules and AHF modules under a unified, high-speed internal communication bus (such as CAN bus) and a centralized master control algorithm. The SVG handles continuous, step-less reactive compensation with a 5ms response speed, while the AHF simultaneously purifies full-spectrum high-order harmonics.

Asset Protection Value

The dual active modules work in perfect synergy to lock the power factor precisely at 0.99. This eliminates voltage fluctuations and flicker, providing comprehensive protection for high-precision core assets like PVD furnaces.

Conclusion

Traditional electromagnetic passive compensation is proving inadequate against the heavy non-linear harmonic surges of modern industrial automation. As demonstrated by this technical field practice, transitioning to a full-active digital power quality architecture—represented by combined SVG + AHF systems—is the only definitive path to constructing a highly efficient, completely safe, and resonance-free modern green power network.
