In the physical commissioning of power distribution systems, a negative power factor (PF) or abnormal sign displayed on the power factor controller is typically a physical misreading where the system logic perceives the equipment to be in a state of "over-compensation" or "energy backfeeding." This phenomenon is almost exclusively caused by a physical polarity reversal of the sampling current transformer (CT) or a phase mismatch, preventing the controller from correctly identifying the vector direction of active and reactive power.

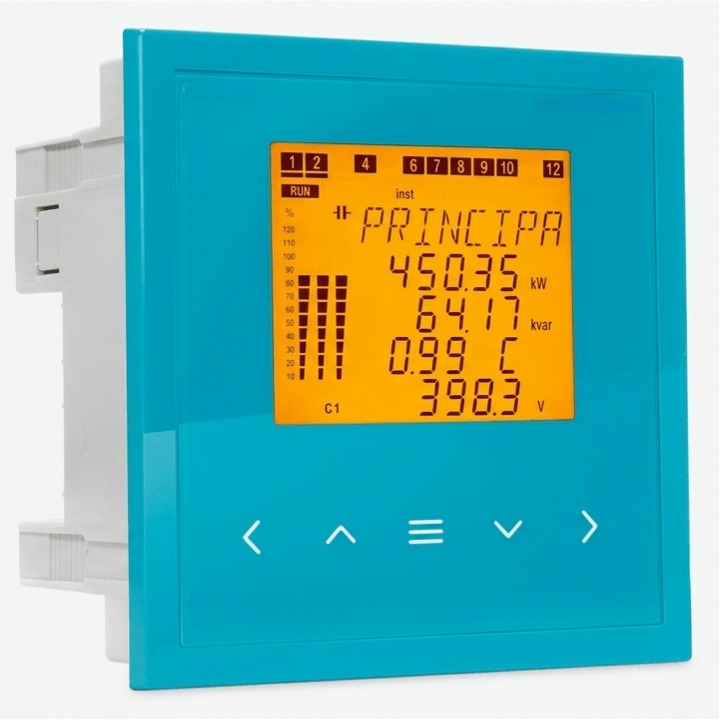

1. The underlying physical and mathematical logic behind the Power Factor Controller negative sign
The negative sign on a Power Factor Controller carries a specific vector meaning in power electronics; it typically represents that the phase of the reactive power is leading the voltage, or that the physical direction of the active power has been reversed. From a physical standpoint, the controller performs real-time monitoring of the zero-crossing points and the phase angle ($$\phi$$) between the sampling voltage and the sampling current. If the CT wiring polarity is correct, a standard lagging inductive load should display a positive value (e.g., 0.85 Lag). However, when the controller captures a current vector shifted by 180° relative to the voltage vector, its internal algorithm determines that the system is feeding energy back into the grid. This physical misalignment causes the Power Factor Controller to display a negative sign, essentially misinterpreting "energy consumption" as "distributed generation," thereby disrupting the entire compensation logic.
2. Physical mechanism of Power Factor Controller reading errors caused by reversed CT polarity
In complex installation sites, if the primary side (P1/P2 faces) or the secondary side (S1/S2 wires) of the current transformer (CT) is reversed, it leads to a physical flip of the sinusoidal current signal acquired by the Power Factor Controller. This flip manifests in the phasor diagram as the current vector pointing in the opposite direction. Consequently, even if the backend is connected to purely inductive motor loads, the sampled data received by the controller will appear as "capacitive leading," causing the Power Factor Controller to show a negative PF value. HertzKron technical specifications mandate that CT orientation toward the transformer or load side must be verified with a multimeter before construction. Any slight physical polarity reversal will lead to a collapse of the reactive power compensation logic, triggering violent and unnecessary actions by the capacitor banks.
3. Deep interference caused by phase mismatch between sampling current and voltage in the Power Factor Controller
Beyond simple polarity reversal, another frequent cause of negative values on a Power Factor Controller is a "phase sequence error at the common terminal." This occurs when the current sample is taken from Phase A, while the voltage sample is bridged across Phase B or Phase C. In this state of physical phase misalignment, the power factor angle measured by the controller will include a fixed physical offset of 120° or 240°. This logical deviation causes the Power Factor Controller to lose all perception of the actual load characteristics, resulting in readings that jump erratically between negative values and near-zero minimums (e.g., -0.01). This unstable physical state not only fails to provide compensation but also triggers frequent oscillations in the Capacitor duty Contactor, causing irreversible thermal stress damage to contact points and electrolytic capacitors.
4. Digital software-based phase adjustment to correct polarity reversal in the Power Factor Controller
For high-end HertzKron Power Factor Controller units equipped with intelligent algorithms, if the installation environment makes it extremely inconvenient to physically change the CT wiring, a "CT Polarity Reverse" can be executed via the internal expert menu. This function uses Digital Signal Processing (DSP) algorithms to mathematically rotate the input sampling current waveform by 180°, effectively offsetting the physical wiring error at the logic level. This digital correction method reduces commissioning time by 90% and, more importantly, eliminates the risk of high-voltage open circuits associated with physically disconnecting CT secondary wires in a live environment. This allows the Power Factor Controller to quickly restore correct positive monitoring and re-establish closed-loop compensation logic.
5. Physical rewiring to permanently resolve polarity offset and phase sequence confusion in the Power Factor Controller
For traditional models or devices lacking software phase adjustment features, a physical rewiring approach is mandatory. First, ensure the system is completely powered down or that the CT secondary is reliably shorted using shorting links. Then, swap the two physical wires, S1 and S2, connected to the current input port of the Power Factor Controller. After completing the physical swap, re-energize the system and observe the real-time power factor sign on the Power Factor Controller. If the sign successfully turns positive and the value aligns with the site load characteristics (e.g., between 0.8 and 0.9), the physical polarity is confirmed as corrected. The HertzKron engineering team emphasizes that physical rewiring is the most rigorous and thorough solution, ensuring the original physical authenticity of the sampling data and eliminating potential instability caused by algorithmic redundancy.
