In low-voltage complete electrical systems and reactive power compensation installations, capacitor dutyduty contactors and general-purpose AC contactors undertake the core control tasks of frequent switching and current breaking and making. As mechanical electrical components designed for high-cycle arc interruption, contactors face severe operational challenges during daily grid operation.
Once common failures such as contact welding, severe contact bouncing, poor arc extinction performance, or coil overheating burnout occur, contactors will generate destructive inrush current impacts on parallel power factor correction capacitors. In severe cases, the faults will trigger phase short circuits, cabinet burning, and unexpected industrial shutdowns, causing huge economic losses and brand credibility risks for global system integrators and electrical distributors.
For overseas electrical brand owners and product directors sourcing reliable contactor OEM/ODM manufacturers in China, the market is flooded with suppliers claiming “long mechanical life” and “silver alloy contacts”. However, most mass-produced contactors suffer from inconsistent mechanical precision and unstable arc extinction performance. Identifying a genuine industrial-grade manufacturer with precise machining capabilities and strict quality control becomes critical for long-term brand cooperation.
Based on real factory audit experiences of overseas brand executives visiting Chinese low-voltage electrical manufacturing bases, this guide summarizes the professional screening criteria for capacitor duty contactor suppliers, covering contact material selection, arc extinguishing structure, automated assembly processes, and full lifecycle performance testing.
1. Contact Material & Pre-Charging Resistance Design (Core of Anti-Welding Performance)
When auditing a contactor factory, the component warehouse and metal stamping workshop should be the first inspection station. The anti-welding capability, arc erosion resistance, and overall electrical service life of contactors are fundamentally determined by contact material selection and pre-switching structural design.
Silver Alloy Contact Material & Silver Content
The contact is the core component of an AC contactor. Professional buyers always verify the specific alloy material adopted by the manufacturer. Industrial-grade contactors strictly adopt high-quality silver tin oxide (AgSnO2) or silver nickel (AgNi) alloy contacts with standardized silver proportion and composite layer thickness. Premium silver alloy materials effectively resist high-temperature arc ablation and prevent contact welding under frequent switching and overload conditions, ensuring stable electrical performance throughout millions of switching cycles.

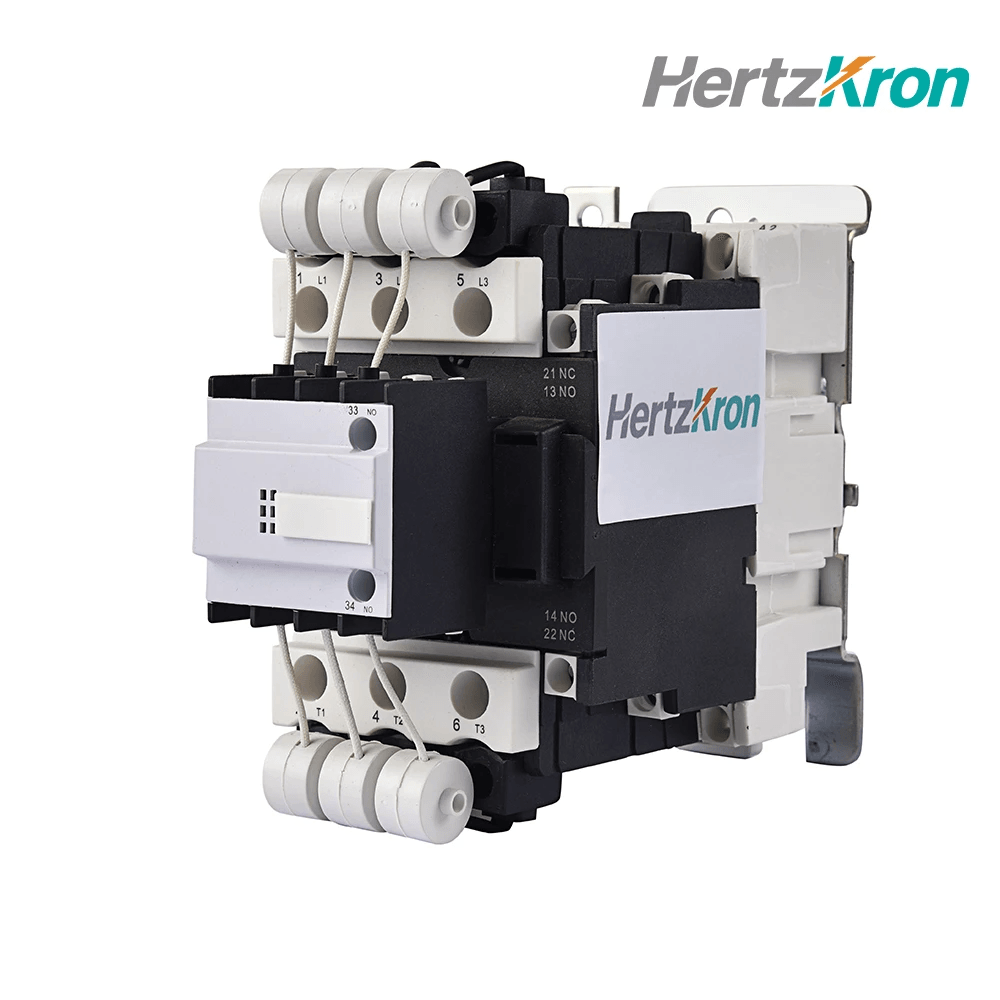

Pre-Charging Resistor & Auxiliary Contact Structure (AC-6b Application)
For dedicated capacitor dutyduty contactors, the pre-switching auxiliary contact and current-limiting resistor structure determine inrush current suppression capability. Before the main contacts close, the auxiliary pre-charging contacts conduct first and suppress the capacitor inrush current within a safe range through built-in resistors. The main contacts close subsequently with zero impact current, greatly extending the service life of both the contactor and reactive power compensation capacitors.
High-Temperature Coil Wire & Silicon Steel Core Quality
Electromagnetic suction stability and power consumption depend entirely on coil enameled wire and iron core quality. Reliable manufacturers adopt high-temperature resistant enameled wires and high-precision laminated silicon steel sheets with complete anti-rust treatment. This design avoids coil burnout caused by long-term heating and eliminates excessive electromagnetic noise and unstable suction during core operation.
2. Precision Assembly & Automated Production Workflow (Guarantee of Batch Consistency)
Contactor performance relies heavily on ultra-precision mechanical assembly and strict gap control. Only highly automated production lines and standardized process management can eliminate the common industry problem of “qualified samples but unstable mass production quality”.
Standard Contactor Production & QC Workflow
A mature industrial contactor OEM/ODM factory implements a complete closed-loop manufacturing and quality control system:
Incoming Quality Control (IQC) ➔ Automatic Contact Riveting & Welding ➔ Coil & Electromagnetic Core Assembly ➔ Main Contact & Arc Chute Installation ➔ Automatic Full-Machine Assembly ➔ 100% Electrical & Mechanical Performance Full Test ➔ Laboratory Life Sampling Test ➔ Finished Product Packaging & Shipment
Key Process Control Standards
Automatic Contact Welding & Riveting: The welding firmness between contacts and conductive copper sheets directly determines conductivity and heat generation. Premium factories adopt automatic welding equipment with real-time pressure monitoring to eliminate virtual welding, offset assembly, and poor conductivity risks.
Arc Chute & Grid Plate Assembly: The arc extinguishing structure defines arc cooling and breaking speed during current interruption. Professional manufacturers strictly control arc grid material quality and gap uniformity, rapidly stretching, cooling, and extinguishing electric arcs to prevent inter-phase short circuit faults.
Precise Contact Stroke & Pressure Calibration: Contact over-travel, open distance, initial pressure, and final pressure directly affect breaking performance and contact bouncing. Automated precision calibration equipment ensures consistent mechanical parameters for every single contactor in batch production.
3. Laboratory Testing & Service Life Verification (Industrial-Grade Reliability)
Simple on-off power tests cannot expose hidden mechanical fatigue and arc erosion risks. Professional low-voltage electrical factories must be equipped with complete type test laboratories compliant with IEC 60947 standards to verify long-term operational reliability.
100% Full Electrical & Mechanical Inspection
Every finished contactor undergoes strict full testing, including pick-up voltage, drop-out voltage, three-phase synchronization, and high-voltage withstand tests, ensuring zero-defect delivery for all batch products.
High-Multiplier Inrush Current Impact Test
For capacitor dutyduty contactors, professional test benches simulate extreme inrush current impact up to 60~100 times rated current to verify the stability of pre-charging resistance and main contact systems under severe grid switching conditions.
Mechanical & Electrical Life Testing (AC-3 / AC-6b)
Industrial-grade contactors must pass standardized high-cycle mechanical life tests (up to several million times) and professional AC-6b capacitor switching electrical life tests in strict accordance with IEC 60947 standards, ensuring stable performance for long-term frequent switching scenarios.
Temperature Rise Test
Professional temperature rise test platforms verify contact and coil temperature rise under long-term rated current operation. Qualified industrial contactors strictly control temperature rise within 65K, avoiding aging and failure caused by overheating.
4. Certified Compliance & Full Lifecycle Traceability (Global Market Access)
With increasingly stringent global safety standards for low-voltage electrical appliances, authentic certification and full-process production traceability are essential foundations for overseas market access and brand after-sales guarantee.
Third-Party Certification Verification
Cross-check official CE, TÜV, UL, and CB test reports to ensure full consistency of product models, rated current, utilization categories (AC-1, AC-3, AC-6b), and factory production addresses, eliminating certificate borrowing and unauthorized subcontracting risks.
Flame Retardant & Environmental Compliance
Contactor housings adopt high-performance PA66 engineering plastic with UL94-V0 high flame retardant and high-temperature resistance grades. All materials fully comply with RoHS and REACH environmental directives, meeting global industrial safety and environmental protection standards.
QR Code Full Lifecycle Traceability
Each finished contactor is equipped with a unique serial number and QR code. The standardized quality management system supports full backward traceability of contact batches, coil batches, plastic housing batches, and assembly teams, realizing precise quality control and rapid after-sales troubleshooting.
5. Professional Overseas OEM/ODM Customization & Engineering Support
Hardware manufacturing strength determines product quality, while flexible engineering customization capabilities determine long-term cooperation stability for global brand partners.
Multi-Voltage Coil Customization
Support customized coil and control module solutions adapting to global power supply standards, including AC 24V, 110V, 220V, 230V, 380V, 400V and DC 24V, matching different regional grid specifications worldwide.
Auxiliary Contact & Accessory Expansion
Provide rich expandable accessories including NO/NC auxiliary contact modules, mechanical interlock devices, and thermal relay connectors to meet diverse industrial control logic and system integration requirements.
Brand Appearance & Export Packaging Customization
Support customized housing color, shell screen printing, laser marking, brand nameplate design, and shockproof seaworthy packaging tailored for long-distance international transportation, helping overseas brands achieve localized market differentiation.
About Hertzkron: Trusted Low-Voltage Electrical & Power Quality Partner
Specializing in power quality optimization and low-voltage control component manufacturing, Hertzkron adheres to strict industrial manufacturing standards for every capacitor duty contactor and AC contactor.
Equipped with modern automated assembly lines, high-precision contact welding equipment, and IEC 60947 compliant professional type test laboratories, Hertzkron implements full-process quality control — from silver alloy material screening and current-limiting resistance matching to 100% voltage and withstand voltage full inspection.
We provide high-reliability, long-life, and inrush-resistant contactor OEM/ODM customized manufacturing services for global electrical brands, system integrators, and engineering contractors.
If you are seeking a stable and professional Chinese contactor manufacturing partner to safeguard your brand reputation and project quality, feel free to contact Hertzkron. We support product sample testing, official technical datasheet provision, and professional on-site factory audits.
Contact Us
Visit the official Hertzkron website or email our international sales team to obtain the latest product catalog and exclusive OEM/ODM cooperation solutions.
