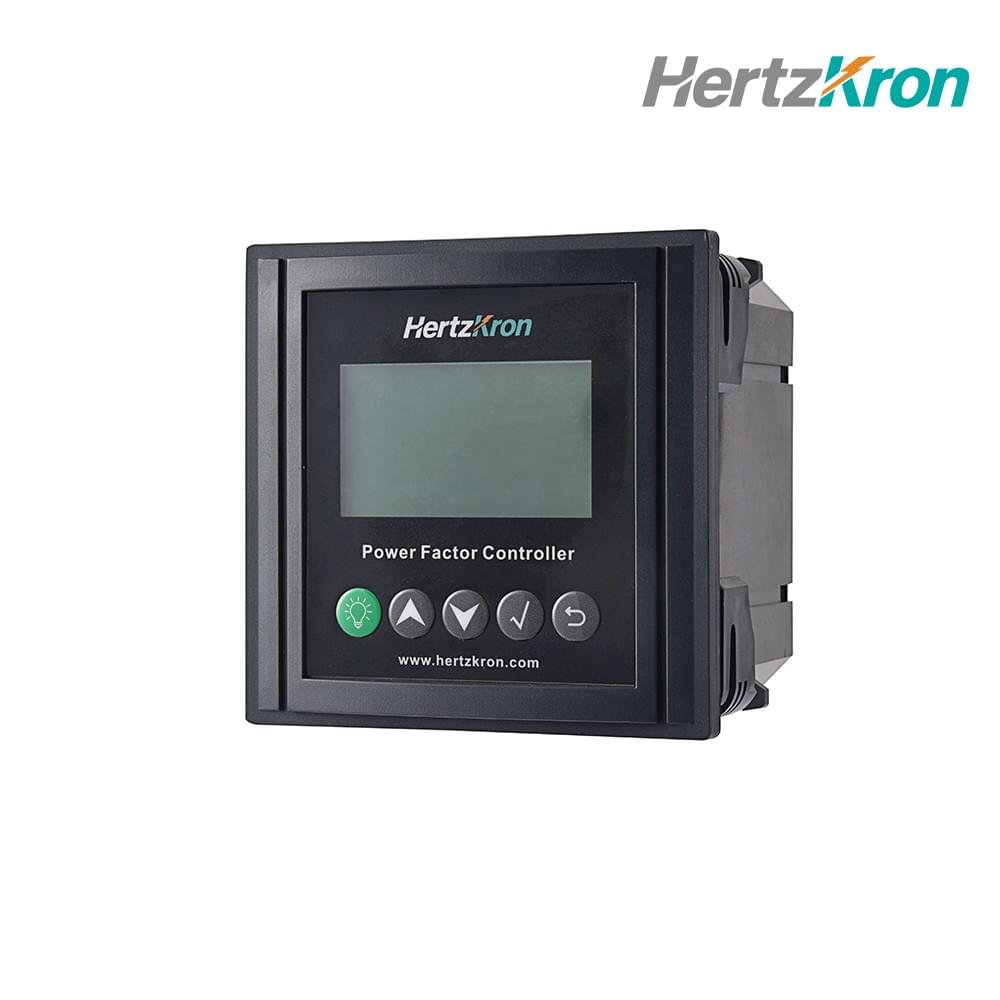

In low-voltage reactive power compensation and power quality improvement systems, the Power Factor Controller (PFC Controller) serves as the “brain” of the entire compensation cabinet. It performs real-time sampling of grid voltage and current, calculates reactive power, power factor, and harmonic distortion rate, and precisely controls the switching sequence of capacitor duty contactors, composite switches, and thyristor modules according to built-in logic.
Unlike conventional power equipment such as reactors and capacitors, PFC controllers are highly integrated microelectronic and digital signal processing devices. Once problems including inaccurate sampling, disordered switching logic, poor EMI resistance, or LCD freezing occur, minor issues will lead to grid over-compensation or under-compensation and official power utility penalties. In severe cases, frequent capacitor switching oscillation will cause contactor burnout and capacitor breakdown, resulting in complete system downtime.
For overseas electrical brand owners and product directors sourcing PFC controller OEM/ODM manufacturers in China, the market is flooded with suppliers advertising “intelligent control” and “multi-functional display”. However, few factories own independent algorithm development capabilities, robust industrial-grade anti-interference design, and stable mass production quality. Selecting a professional and reliable manufacturer is critical for long-term brand cooperation and stable project operation.
Based on real on-site audit experiences of global electrical brand executives visiting Chinese intelligent control manufacturing bases, this article summarizes an in-depth supplier screening guide for power factor controllers, covering core hardware selection, EMC anti-interference design, control algorithm verification, and high-low temperature aging testing standards.
1. Sampling Chip & Main Control Hardware Selection (Foundation of Sampling Accuracy)
When auditing a PFC controller factory, the core component warehouse and SMT production line should be your first inspection priority. The overall sampling accuracy, calculation speed, and long-term operational stability of the controller are fundamentally determined by hardware grade and component quality.
High-Precision Sampling Chip & Industrial MCU/DSP
Professional grid parameter calculation requires real-time acquisition and analysis of three-phase voltage, current, active power, reactive power, and harmonic data. Reliable industrial-grade PFC controllers adopt high-precision 16-bit or 24-bit A/D conversion chips and high-performance 32-bit industrial MCU/DSP processors. Premium hardware ensures minimal sampling deviation, accurate power factor calculation, and sensitive dynamic response under fluctuating grid conditions.
Full Industrial-Grade Electronic Components & Power Modules
Qualified manufacturers strictly select industrial-grade components with a wide temperature range of -40℃ to +85℃ for core circuit boards, including switching power modules, main capacitors, and signal relays. High-stability power modules guarantee continuous and reliable controller operation even under severe grid voltage fluctuations and instantaneous surge interference.
Automated Three-Proof Conformal Coating Process
Reactive power compensation cabinets usually operate in harsh industrial environments with dust, high humidity, and corrosive gas. Trustworthy factories apply automated standardized three-proof coating (moisture-proof, salt spray-proof, mildew-proof) on all PCB boards. This essential process prevents micro-short circuits and circuit board corrosion caused by long-term field operation, greatly extending controller service life.
2. EMC Anti-Interference Design & Precision Assembly Workflow (Industrial-Grade Reliability Barrier)
Capacitor switching generates intense electromagnetic transient pulses, while on-site inverters and variable-frequency equipment produce continuous high-frequency interference. A controller’s EMC anti-interference capability is the core standard to distinguish commercial-grade products from genuine industrial-grade equipment.
Standard PFC Controller Production & QC Workflow
A professional PFC controller OEM/ODM factory implements a complete closed-loop manufacturing and quality control system:
Incoming Quality Control (IQC) ➔ High-Precision SMT Mounting ➔ Automated Optical Inspection (AOI) ➔ PCB Three-Proof Coating ➔ Complete Assembly & Key Function Testing ➔ High-Low Temperature Cycling Aging Test ➔ 100% Signal Simulation & Full Function Inspection ➔ Finished Product Packaging & Delivery
Core Design & Process Control Standards
Hardware EMC Anti-Interference Circuit Design
Industrial-grade controllers are equipped with complete EMI filter circuits, varistors, and TVS transient suppression diodes at signal and power input terminals. The professional circuit design ensures strong resistance against Electrical Fast Transient (EFT) and Lightning Surge interference, avoiding program crash, data disorder, and mis-switching under complex electromagnetic environments.
SMT Precision Mounting & AOI Full Inspection
Advanced fully automatic SMT production lines and AOI optical inspection equipment eliminate missing soldering, cold soldering, and tombstone defects for miniature electronic components. Automated assembly ensures consistent circuit board precision and batch stability for mass production.
Front Panel & Housing Protection Grade
Industrial PFC controller panels reach IP41 or IP54 protection levels. All physical keys and LCD/LED display screens pass millions of high-frequency pressing and aging tests, ensuring clear display, sensitive response, and stable operation in long-term industrial field scenarios.
3. Laboratory Testing & High-Low Temperature Aging Verification (Strict Quality Bottom Line)
Simple power-on display tests cannot expose hidden risks such as sampling drift and program deadlock. Professional manufacturers rely on professional simulation test benches and environmental aging chambers to screen out unqualified products in advance.
100% Standard Signal Simulation Full Inspection
Every finished controller undergoes full performance testing through a three-phase programmable standard signal source. Factories strictly verify voltage, current, and power factor sampling accuracy up to Class 0.2 or Class 0.5, and confirm the accuracy of relay output and switching action logic to eliminate sampling deviation and functional failure.
High-Low Temperature Cycling Aging Test
Qualified aging rooms implement long-term cyclic power-on aging within a temperature range of -25℃ to +70℃. This high-intensity environmental screening effectively eliminates early infant mortality failures of electronic components, ensuring stable and consistent performance of controllers after long-term field operation.
Professional EMC Laboratory Testing
Reliable factories are equipped with professional EMC testing equipment for Electrostatic Discharge (ESD), Electrical Fast Transient (EFT), and Lightning Surge immunity tests. Controllers must maintain normal program operation and accurate data display under strong electromagnetic impact, without code disorder or system restart.
4. Control Algorithm & Intelligent Software Logic (Core Product Competitiveness)
Hardware determines basic quality, while software algorithm determines long-term system matching performance and equipment lifespan. Excellent control logic optimizes switching frequency, reduces mechanical loss of contactors and capacitors, and improves overall power quality governance efficiency.
Diversified Switching Logic Modes
Industrial-grade PFC controllers support multiple intelligent switching modes, including cyclic switching, coded switching (1:2:2, 1:2:4:8, etc.), combined common and split compensation, and dual closed-loop control based on reactive power and power factor. Flexible logic adapts to diverse industrial load characteristics and complex grid fluctuation scenarios.
Grid Protection & Harmonic Alarm Mechanism
Built-in comprehensive protection functions cover overvoltage, undervoltage, phase loss, and excessive THD harmonic protection. When grid harmonic distortion exceeds the threshold, the controller automatically cuts off capacitor banks to avoid harmonic amplification and protect primary power equipment from burnout and breakdown.
Intelligent Communication & Standard Protocol Support
All industrial models are equipped with built-in RS485 communication interfaces and support standard Modbus-RTU protocols. It enables seamless connection with overseas SCADA systems, EMS energy management platforms, and smart grid monitoring systems, realizing remote data monitoring, parameter adjustment, and fault diagnosis.
5. Overseas OEM/ODM Customization & Technical Service Capabilities
For global brand cooperation, in addition to hardware quality, multi-dimensional customization capabilities and engineering response efficiency directly determine project adaptability and market competitiveness.
Multi-Language UI & Brand Logo Customization
Support multi-language LCD interface switching including English, Spanish, French, and Arabic. Custom boot screens, panel laser marking, and brand logo embedding help overseas brands build localized and differentiated product images.
Global Grid Voltage & Frequency Adaptation
Flexibly adapt to global grid standards, supporting 50Hz/60Hz dual frequency and wide voltage operation from 100V to 480V. Compatible with direct power supply and PT/CT indirect sampling methods to meet regional grid specifications worldwide.
Exclusive Firmware (Firmware) Customization
Support secondary development and personalized firmware customization according to special engineering requirements, including customized switching logic, adjustable protection thresholds, and modified communication register addresses, providing exclusive technical solutions for brand partners.
About Hertzkron: Trusted PFC Controller & Power Quality Partner
Specializing in power quality optimization and intelligent control technology, Hertzkron strictly implements industrial-grade manufacturing standards for every Power Factor Controller.
Equipped with modern SMT workshops, fully automatic three-proof coating production lines, professional EMC test laboratories, and high-low temperature cycling aging rooms, Hertzkron achieves full-process quality control — from high-precision chip selection and EMC circuit optimization to 100% signal accuracy calibration and long-term aging screening.
We provide high-precision, anti-interference, and intelligent PFC controller OEM/ODM customized manufacturing services for global electrical brands, system integrators, and engineering contractors.
If you are looking for a reliable Chinese manufacturer to stabilize your product quality and brand reputation, feel free to contact Hertzkron. We provide product sample testing, official technical datasheets, and professional on-site factory audits led by our engineering team.
Contact Us
Visit the official Hertzkron website or email our international sales team to obtain the latest product catalog and exclusive OEM/ODM cooperation solutions.
