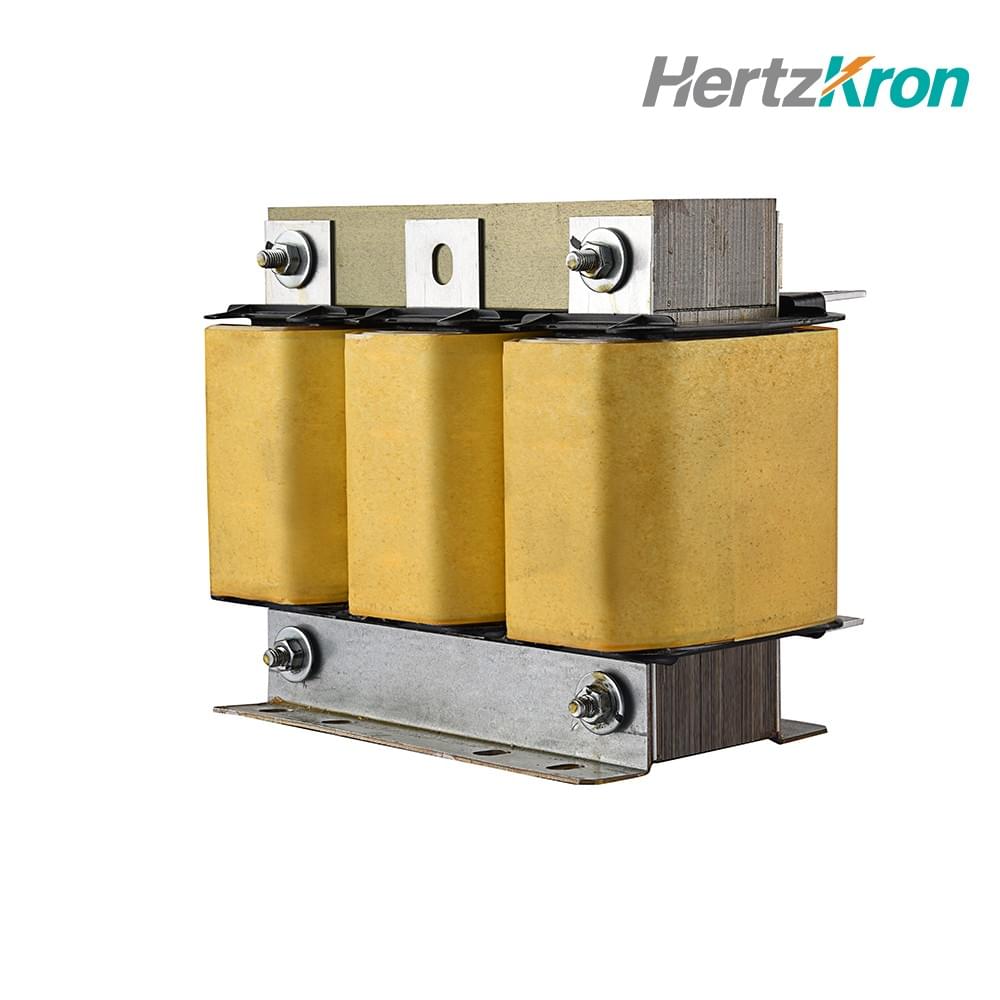

In industrial power grids and low-voltage reactive power compensation systems, detuned reactors and filter reactors work alongside PFC capacitors as critical protective devices. They suppress harmonic currents, limit dangerous inrush currents, and stabilize the entire capacitor bank system.
Unlike standard electronic components, reactors are heavy-duty power equipment that integrates electromagnetics, insulation materials, and thermal management. Minor manufacturing defects such as local overheating, core saturation, inductance drift, or insulation breakdown can rapidly destroy matching capacitors. In severe cases, it causes cabinet overheating, fire hazards, and costly industrial production shutdowns.
For overseas electrical brand owners, product directors, and global system integrators sourcing reactor OEM/ODM manufacturers in China, the market is saturated with suppliers claiming “full copper winding” and “low temperature rise.” However, few factories deliver consistent industrial-grade quality and long-term operational stability.
Based on on-site audit experiences from international electrical brand executives, this guide breaks down the core criteria for selecting a trustworthy reactor manufacturing partner, covering material selection, automated production, type testing, and full quality traceability.
1. Conductor & Silicon Steel Material Selection (Determines Loss, Heat & Linearity)
A reactor’s core performance — including power loss, temperature rise, and inductance linearity — is fundamentally decided at the raw material stage. A professional factory audit must begin with the raw material warehouse and lamination processing area.
Copper/Aluminum Conductor & Enameled Wire Grade
Conductor material directly determines reactor size, loss performance, and heat dissipation. Reliable manufacturers clearly distinguish full copper and aluminum conductors and strictly control enameled wire quality. Professional industrial reactors adopt high-temperature resistant wires of Class H (180°C) or Class N (200°C) with uniform insulation thickness and strong film adhesion, avoiding insulation aging and burnout under long-term high-load operation.
Low-Loss Cold-Rolled Silicon Steel Sheets
The iron core acts as the skeleton of a filter reactor. Premium factories use high-permeability, low-core-loss oriented silicon steel sheets. Uneven lamination or insufficient compression leads to severe electromagnetic noise and core vibration during operation, which accelerates structural aging and reduces equipment lifespan.
Precision Air Gap & Insulation Spacer Design
Inductance linearity under harmonic and overload conditions depends entirely on core air gap design. Qualified manufacturers apply high-heat, high-mechanical-strength insulation spacers and high-strength adhesive curing technology. This prevents air gap deformation under continuous electromagnetic impact, maintaining stable inductance linearity for decades.
2. Winding & VPI Impregnation Process (Guarantees Batch Consistency)
Precision mechanical processing and strict insulation treatment are essential for high-quality reactors. Only automated production lines and standardized process management can eliminate the common issue of “good samples, unstable mass production.”
Standard Reactor Production & QC Workflow
A mature industrial reactor factory implements a complete closed-loop manufacturing system:
Incoming Quality Control (IQC) ➔ Core Lamination & Air Gap Assembly ➔ High-Precision Automatic Coil Winding ➔ Core & Coil Compression ➔ Vacuum Pressure Impregnation (VPI) ➔ High-Temperature Curing ➔ 100% Full Electrical Testing ➔ Laboratory Type Sampling Test ➔ Finished Product Packaging & Shipment
Key Process Control Standards
Precision Automatic Winding & Terminal Fixing: Advanced automatic winding machines ensure accurate turn counts and compact coil arrangement. Reinforced terminal welding and fastening prevent loosening during long-distance transportation and on-site installation, avoiding poor contact and heat generation faults.
VPI Vacuum Pressure Impregnation: As the core insulation and moisture-proof process, VPI technology completely extracts micro air bubbles inside coils under vacuum conditions and deeply injects insulating varnish under high pressure. Compared with ordinary atmospheric impregnation, VPI significantly improves insulation grades, eliminates internal partial discharge, and greatly reduces operating noise and vibration.
Constant-Temperature High-Temperature Curing: Post-impregnation reactors undergo standardized long-term high-temperature drying in temperature-controlled curing rooms. This ensures full varnish solidification, forming an integrated rigid structure that enhances mechanical stability and anti-vibration performance.
3. Type Laboratory Testing & Inductance Linearity Verification (Core Technical Strength)
Basic parameter testing cannot reflect industrial-grade reliability. A professional type test laboratory is the most credible proof of a manufacturer’s R&D and engineering capabilities, especially for harsh grid working conditions with heavy harmonics and frequent overloads.
100% Full-Routine Electrical Inspection
Every finished reactor undergoes strict full testing, including cold-state inductance detection, three-phase inductance unbalance testing, power frequency withstand voltage test, and DC resistance measurement, ensuring zero-defect delivery for every unit.
Inductance Linearity Retention Test
Core saturation caused by harmonic overload leads to sharp inductance attenuation and system failure. Reliable factories test inductance retention under 1.2x, 1.6x, or higher rated current, verifying stable linear performance under persistent overload and harmonic interference.
Professional Temperature Rise Test
Equipped with professional temperature rise test benches, manufacturers simulate full-load and harmonic superposition operating conditions to verify actual heat generation. Qualified industrial reactors strictly control temperature rise within standard limits (80K / 90K max), ensuring long-term safe operation.
Noise & Vibration Testing
Professional sound level meters detect electromagnetic noise under rated operation, ensuring compliance with industrial and commercial noise standards, adapting to indoor distribution rooms and factory power distribution scenarios.
4. Certified Compliance & Full Lifecycle Traceability (Global Market Access)
With increasingly stringent global electrical safety and environmental regulations, authentic certification and full-process traceability are essential for overseas market access and brand after-sales guarantee.
Verification of International Authorized Certifications
Cross-check UL, CE, TÜV and other third-party test reports to ensure consistency of product models, insulation grades (Class H), and factory addresses on official certificates with the actual production base, avoiding fake certificates and unauthorized subcontracting risks.
Flame Retardant & Environmental Compliance
All insulation varnishes and structural materials fully comply with RoHS and REACH directives, featuring excellent flame retardancy, environmental friendliness, and aging resistance, meeting global environmental and safety standards.
QR Code Full Lifecycle Traceability System
Premium manufacturers equip each reactor with a unique serial number and QR code. Buyers can trace all production information in one click, including silicon steel sheet batches, enameled wire batches, varnish numbers, and on-duty production teams, realizing full-process quality control and rapid after-sales response.
5. Customized OEM/ODM Service & Global Project Support
Hardware manufacturing strength guarantees product quality, while professional engineering services determine long-term strategic cooperation value for global brands.
Customizable Harmonic Tuning Rates & Voltage Grades
Support customized tuning rates (5.67%, 6%, 7%, 14%, etc.) and multi-level rated voltages according to regional grid harmonic characteristics, matching diverse power quality improvement solutions worldwide.
Structural & Appearance Customization
Provide diversified terminal solutions (copper busbars, terminal blocks), embedded temperature switches (normally open/normally closed), customized shell spraying, and brand nameplate design to support brand differentiated positioning.
Seaworthy Export Packaging
As heavy power equipment, reactors require anti-vibration protection during long-distance transportation. Professional factories adopt reinforced wooden boxes and pallet packaging compliant with sea and air freight standards, preventing core loosening and structural deformation during transit.
About Hertzkron: Reliable Power Quality Reactor OEM/ODM Partner
Specializing in reactive power compensation and power quality optimization, Hertzkron adheres to strict industrial manufacturing standards for every filter and detuned reactor.
Equipped with modern automatic winding workshops, standardized VPI vacuum pressure impregnation systems, and IEC-compliant professional type test laboratories, Hertzkron delivers low-loss, low-noise, and low-temperature-rise reactor OEM/ODM services for global electrical brands, system integrators, and engineering contractors.
From raw material screening and precision VPI processing to 100% inductance linearity and high-voltage full inspection, we control every production link rigorously to ensure stable and durable reactor performance for global industrial power systems.
If you are seeking a trustworthy Chinese reactor manufacturer to safeguard your brand reputation and project quality, feel free to contact Hertzkron for product samples, technical datasheets, or a professional factory audit arrangement.
